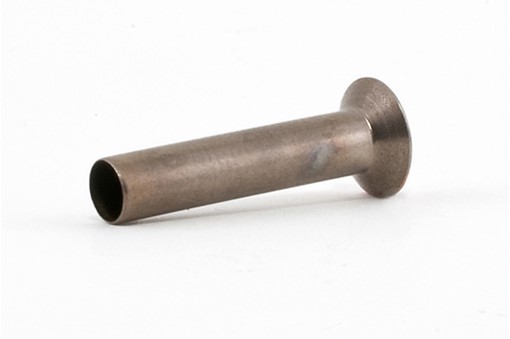

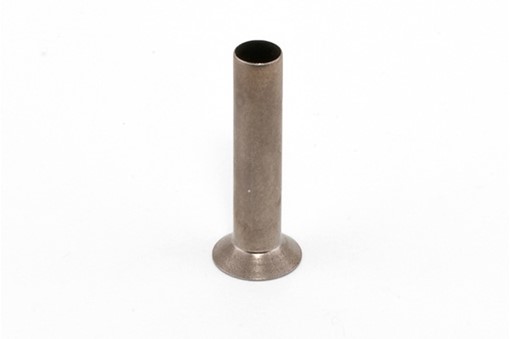

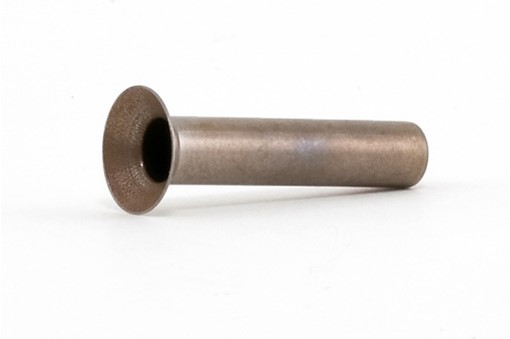

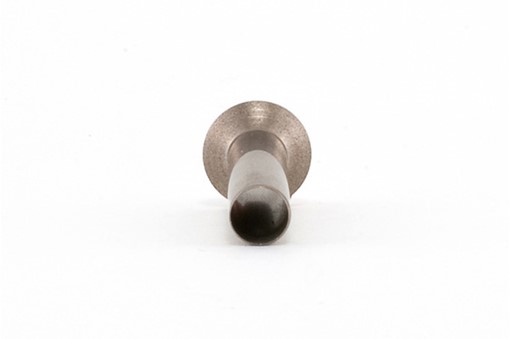

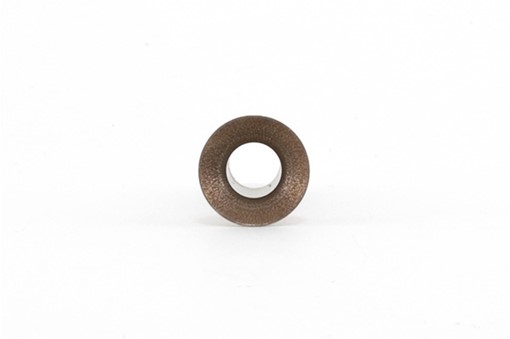

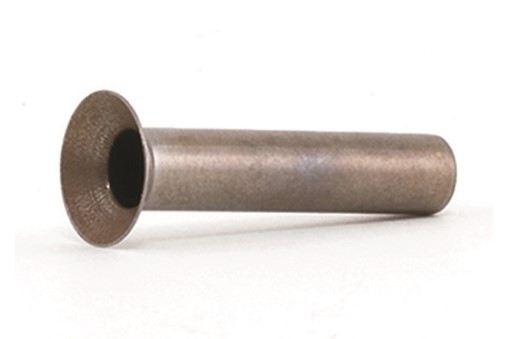

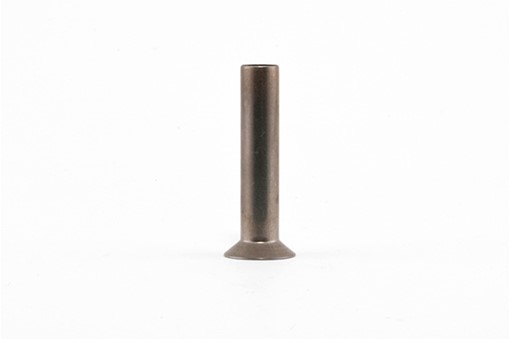

JK5506 - BOLTMOD® 100° Flush Tension-Head Sleeve

  • AirAir
  • SeaSea
  • LandLand
  • IndustrialIndustrial

Details

HEAD STYLE: 100° Flush Tension, First Oversize Diameter

SIZES: Inside diameters provide interference fit for Imperial size bolts in nominal diameters 05 (.156") to 1/2 (.500").  Lengths range to 1.50", depending upon diameter.

MATERIALS: Sleeve is A-286 Stainless Steel, with optional IVD or cadmium plating and/or cetyl alcohol lubrication.

Product Overview

Add to Favorites

Interference bolt fit sleeve transforms nominal bolt or pin into oversize fastener to address damaged hole conditions.  Fastener properties meet or exceed those of traditional oversize hardware, with tremendous cost savings and rapid turnaround.

SUPPORT DOCUMENTS

Applications

  • Fairings
  • Hole Protection & Oversize Hole Correction
  • Insulation Blankets
  • Interiors
  • Panels
  • Repairs
  • Structural Components
