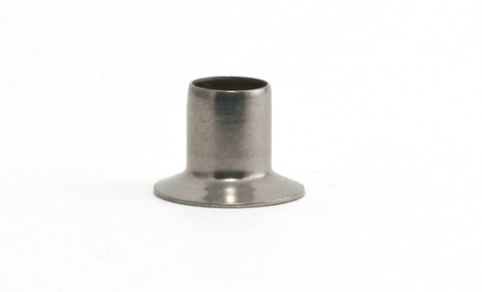

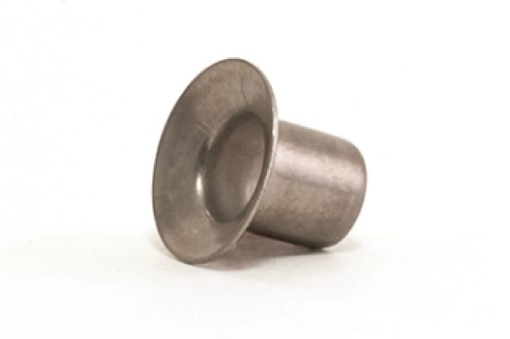

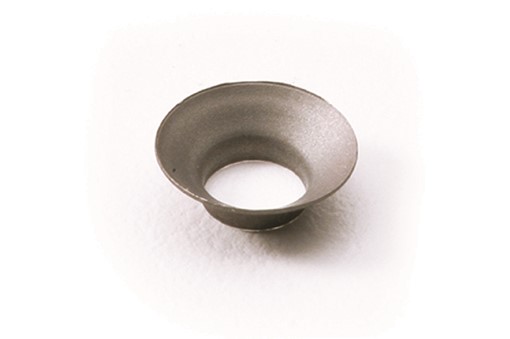

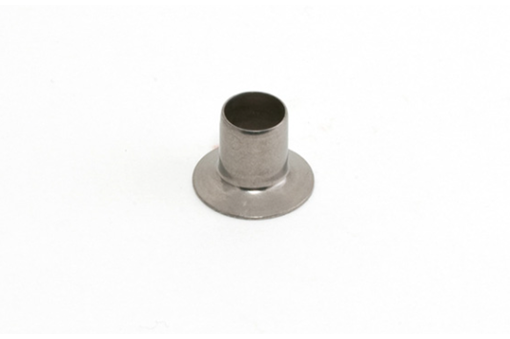

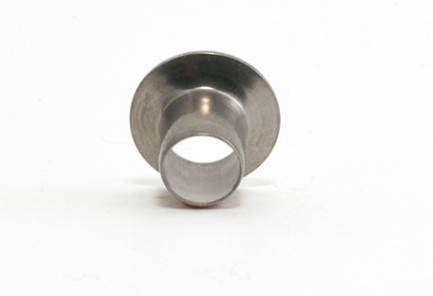

CB5908 - 130° Flush Head Sleeve
-
Air -
Sea -
Land -
Industrial
Details
HEAD STYLE: 130° Head
SIZES: Inside diameters to provide clearance fit with Imperial size bolts in diameters from 08 (.164") to 3/8" (.375"). Outside diameter represents first oversize condition for nominal fastener diameter.
MATERIALS: Sleeve is A-286 CRES Stainless Steel, optionally annealed.

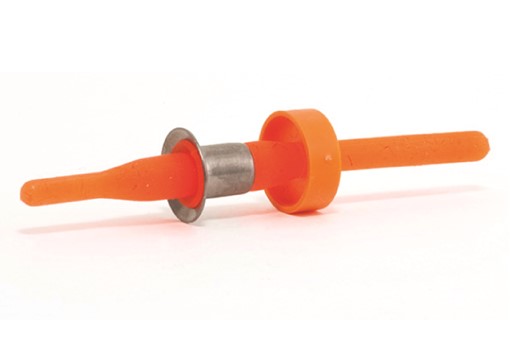

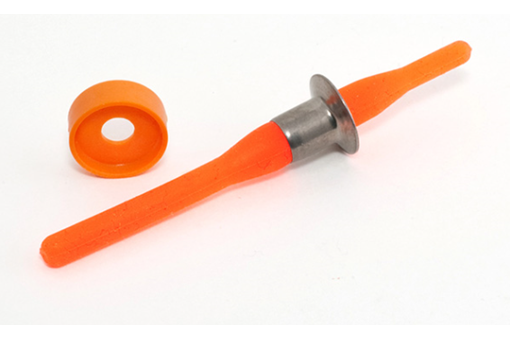

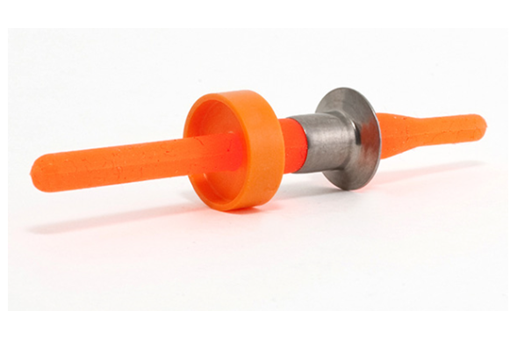

FEATURES: Available with elastic fixture, depth control ring, and retainer, or no fixture.
Product Overview
Add to FavoritesPANDOR® sleeve protects hole from fastener insertion wear and working, corrosion in metallics, and moisture intrusion in composites. Repairs damaged holes, allowing use of nominal bolt. Disposable fixturing provides sleeve depth control and clamp up during adhesive cure.
SUPPORT DOCUMENTS
Applications
- Fairings
- Hole Protection & Oversize Hole Correction
- Insulation Blankets
- Interiors
- Panels
- Repairs
- Structural Components
