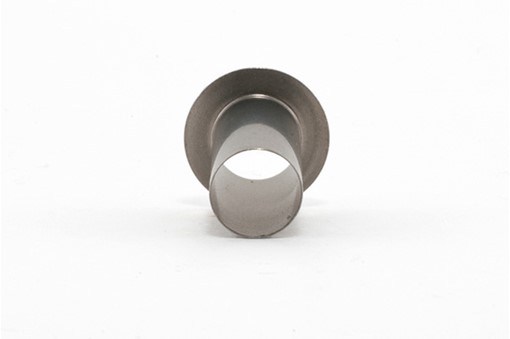

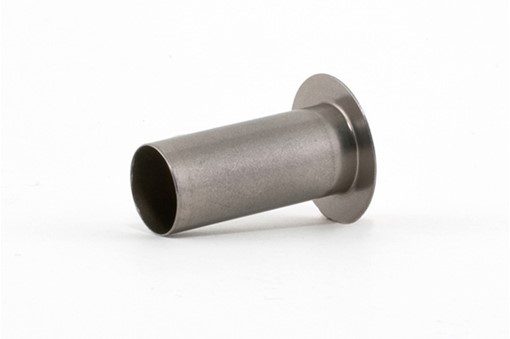

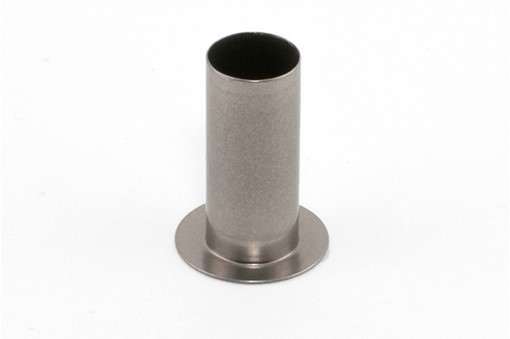

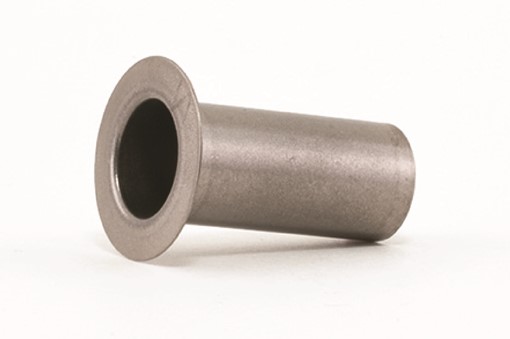

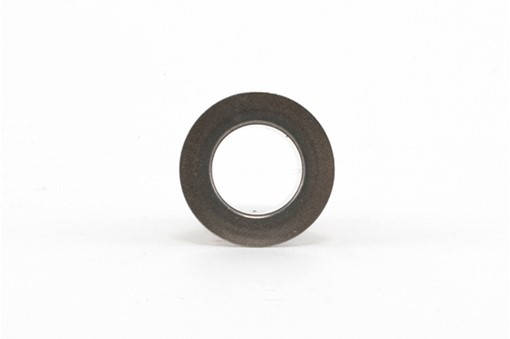

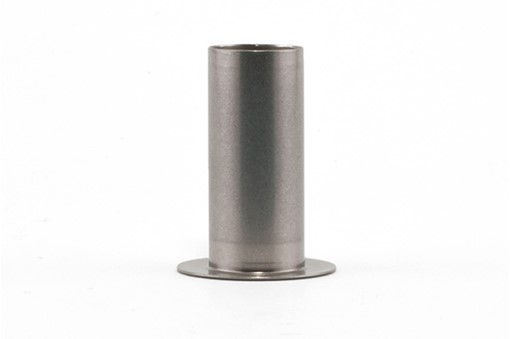

JK5701 - BOLTMOD® Protruding-Head Sleeve, Metric

  • AirAir
  • SeaSea
  • LandLand
  • IndustrialIndustrial

Details

HEAD STYLE: Protruding, Metric, First Oversize Diameter

SIZES: Inside diameters provide interference fit for metric size bolts in nominal diameters M4 to M12.  Grip lengths range to 25,0mm, depending upon diameter.

MATERIALS: Sleeve is A-286 Stainless Steel, with optional NAS4006 aluminum coating and/or cetyl alcohol lubrication.

Product Overview

Add to Favorites

Interference bolt fit sleeve transforms nominal bolt or pin into oversize fastener to address damaged hole conditions.  Fastener properties meet or exceed those of traditional oversize hardware, with tremendous cost savings and rapid turnaround.

SUPPORT DOCUMENTS

Applications

  • Fairings
  • Hole Protection & Oversize Hole Correction
  • Insulation Blankets
  • Interiors
  • Panels
  • Repairs
  • Structural Components
