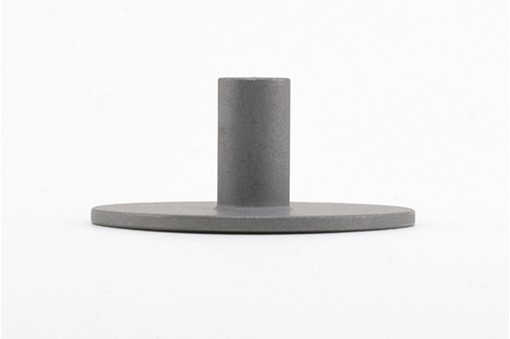

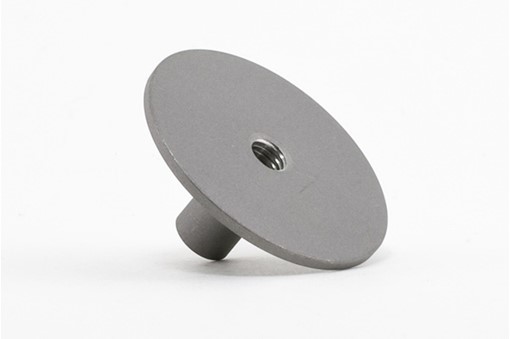

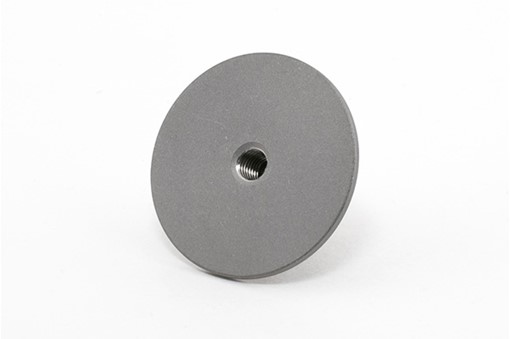

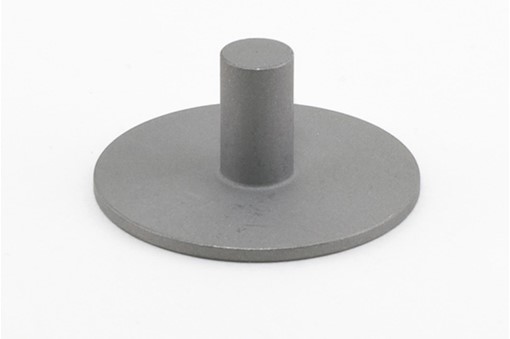

CB9060 - Blind Threaded Bushing, Large Flange

  • AirAir
  • SeaSea
  • LandLand
  • IndustrialIndustrial

Details

SIZES: Imperial fine thread sizes from 10-32 (.190"-32) to 5/16-24 (.312"-24) and Imperial coarse thread sizes from 10-24 (.190"-24) to 5/16-18 (.312"-18). 1.25" Flange Diameter. Grip lengths from 0.50" to 1.00".

MATERIALS: Aluminum, Anodized Aluminum, 300 Series Stainless Steel, A-286 Stainless Steel, and Titanium. Optional epoxy primer.

FEATURES: Standard 1.25" diameter flange, 0.75" x 1.25" trimmed flange optional.

Product Overview

Add to Favorites

Blind threaded bushing enables localized reinforcement of and one-sided attachment to panel structure. Supplied with disposable installation fixture. 1.25" Flange Diameter.


SUPPORT DOCUMENTS

Applications

  • Brackets & Clamps
  • Decking & Floorboards
  • Fairings
  • Interiors
  • Panels
  • Systems Attachment
