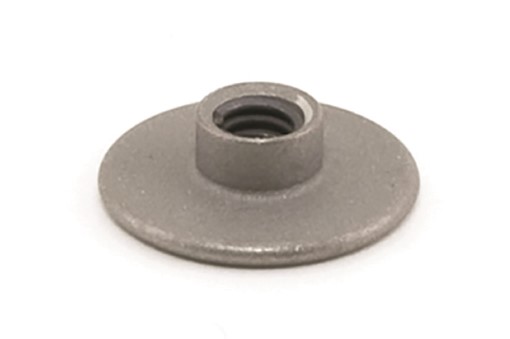

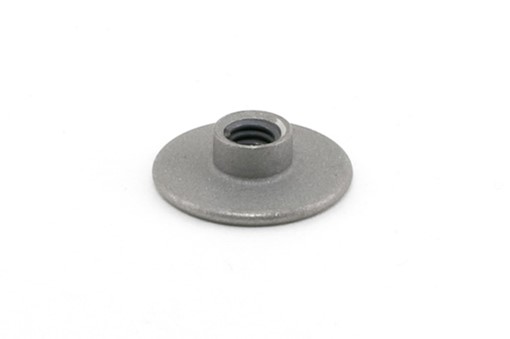

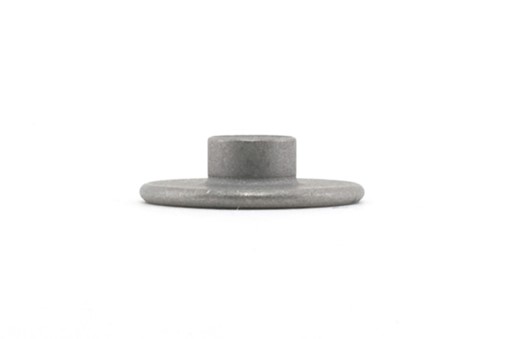

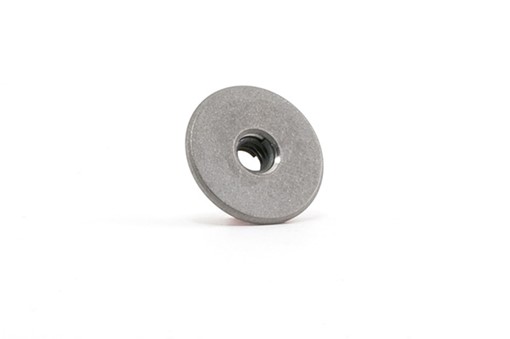

CB9112 - Locking Threaded Bushing, Small Flange

  • AirAir
  • SeaSea
  • LandLand
  • IndustrialIndustrial

Details

SIZES: Imperial thread sizes 6-32 (.138"-32), 8-32 (164"-32), and 10-32 (.190"-32). 0.62" Flange Diameter.

MATERIALS: Anodized Aluminum, 300 Series Stainless Steel, and A-286 Stainless Steel.

FEATURES: Locking thread incorporates MS21209 compliant insert, meets tensile strength requirements for NASM25027 shear nuts, and accepts screws with MIL-S-8879 UNJ threadform. Optional elastic fixture available for reduced footprint applications.

Product Overview

Add to Favorites

Threaded bushing with locking thread enables localized reinforcement of and attachment to panel structure. Supplied with disposable installation fixture. 0.62" Flange Diameter.

SUPPORT DOCUMENTS

Applications

  • Brackets & Clamps
  • Decking & Floorboards
  • Fairings
  • Interiors
  • Panels
  • Systems Attachment
