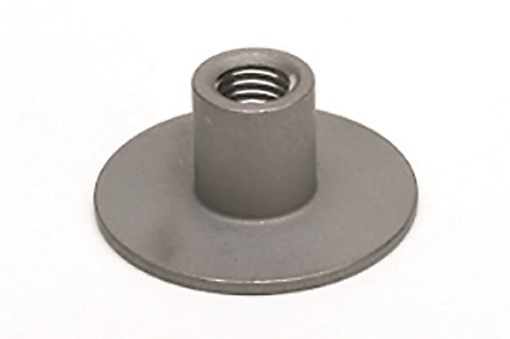

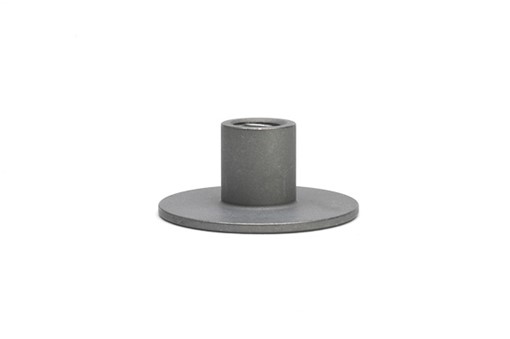

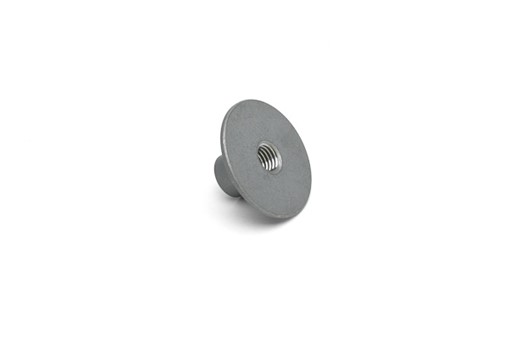

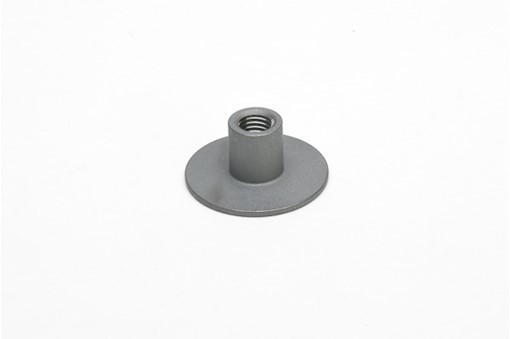

CB5006 - Threaded Bushing, Small Flange

  • AirAir
  • SeaSea
  • LandLand
  • IndustrialIndustrial

Details

SIZES: Imperial fine thread sizes 10-32 (.190"-32) and 1/4-28 (.250"-28), Imperial coarse thread sizes from 06-32 (.138"-32) to 1/4-20 (.250"-20), and metric thread sizes from M3 to M5. Flange diameter varies by thread size.

MATERIALS: Anodized Aluminum, 300 Series Stainless Steel, A-286 Stainless Steel, 316 Stainless Steel, and Titanium. Optional epoxy primer.

Product Overview

Add to Favorites

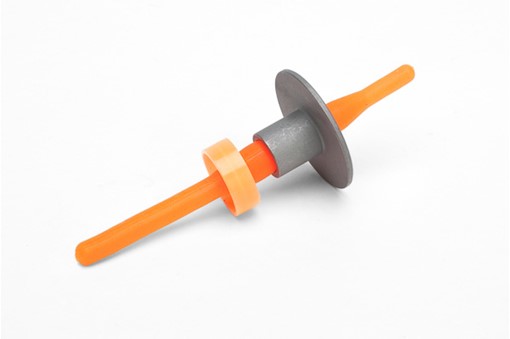

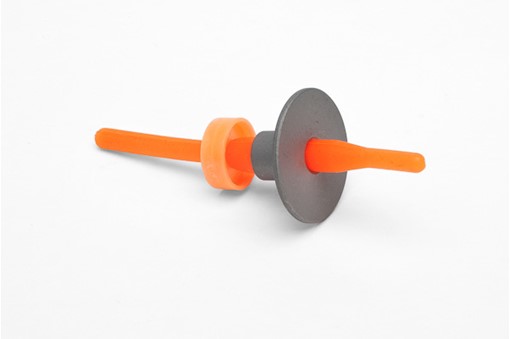

Threaded bushing enables localized reinforcement of and attachment to panel structure. Supplied with internal elastic fixture for reduced footprint applications. 1.00" Max Flange Diameter.

SUPPORT DOCUMENTS

Applications

  • Brackets & Clamps
  • Decking & Floorboards
  • Fairings
  • Interiors
  • Panels
  • Systems Attachment
