CB5007 - Through-Hole Bushing, Small Flange

  • AirAir
  • SeaSea
  • LandLand
  • IndustrialIndustrial

Details

SIZES: Through hole accommodates Imperial fasteners from size 06 through 1/4" and metric fasteners from M3 to M10. Flange diameter varies by thread size.

MATERIALS: Anodized Aluminum, 300 Series Stainless Steel, A-286 Stainless Steel, 316 Stainless Steel, Titanium. Optional epoxy primer.

Product Overview

Add to Favorites

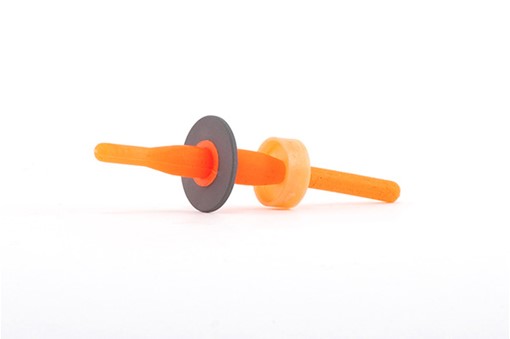

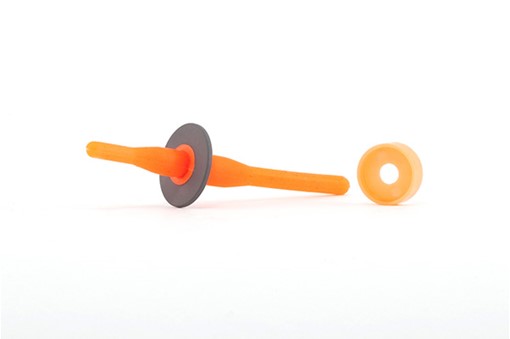

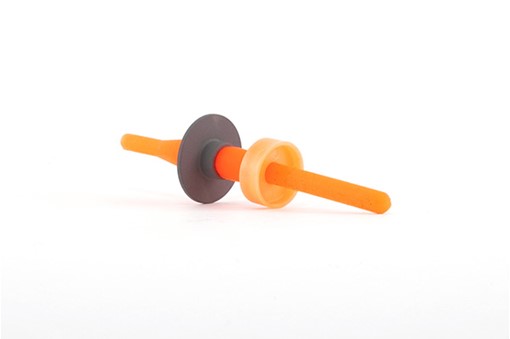

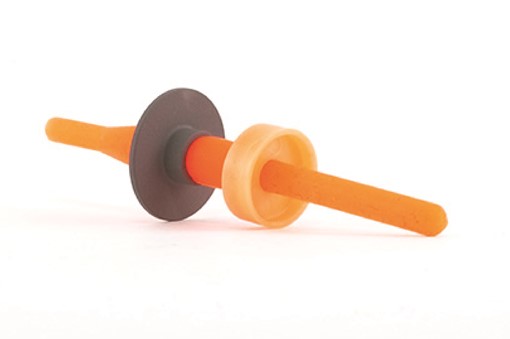

Threaded bushing provides localized reinforcement of panel structure. Supplied with disposable elastic installation fixture. 1.00" Max Flange Diameter.

SUPPORT DOCUMENTS

Applications

  • Brackets & Clamps
  • Decking & Floorboards
  • Fairings
  • Interiors
  • Panels
  • Systems Attachment
