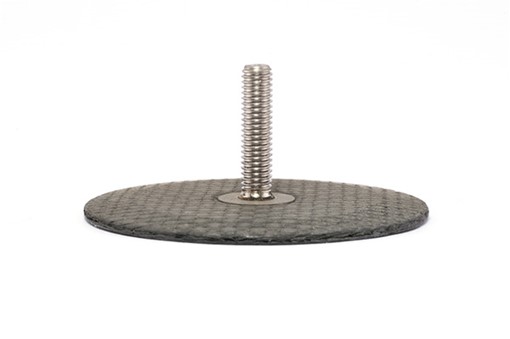

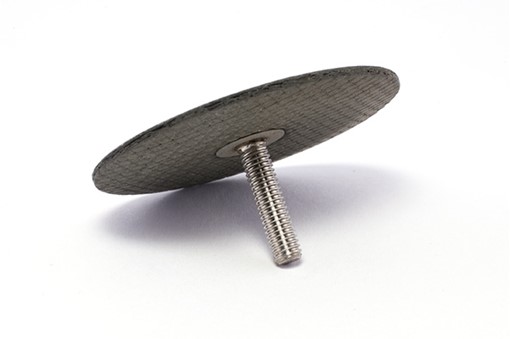

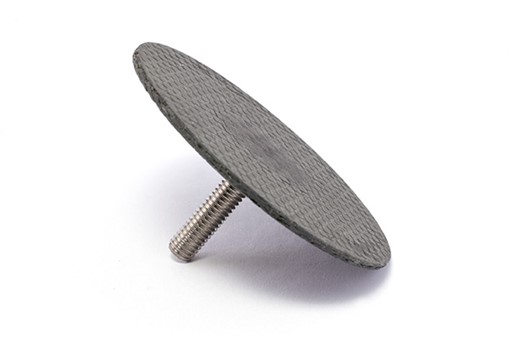

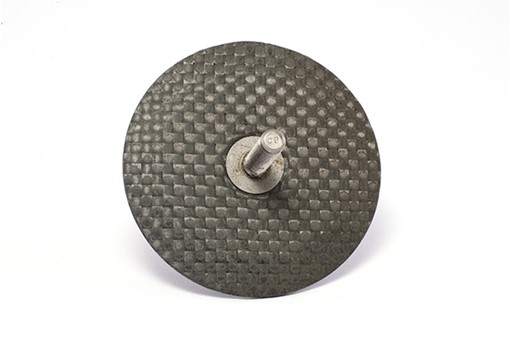

CB4200 - Extra Large Base Stud
-
Air -
Sea -
Land -
Industrial
Details

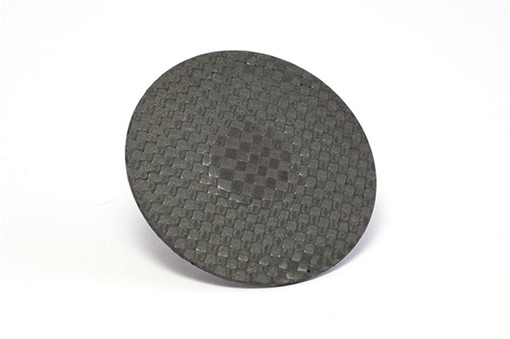

SIZES: Imperial thread sizes from 6-32 (.138"-32) to 5/16-24 (.312"-24). Standard 2.00" diameter round baseplate, with optional 1.25" X 2.00" trimmed baseplate available. Stud lengths from 0.500" through 2.000".
MATERIALS: Baseplate is Carbon/Epoxy or Glass/Epoxy. Stud is Aluminum, Anodized Aluminum, 300 Series Stainless Steel, A-286 Stainless Steel, or Titanium. Optional epoxy primer on bonding surface.
Product Overview
Add to FavoritesStud permits clamped attachment of systems to structure or securing of enclosures or other modular equipment. Supplied with disposable installation fixture.
Applications
- Cables & Wiring
- Decking & Floorboards
- Equipment Attachment
- Insulation Blankets
- Interiors
- Lighting & Sensors
- Panels
- Structural Components
- Systems Attachment
- Tubing & Hoses
