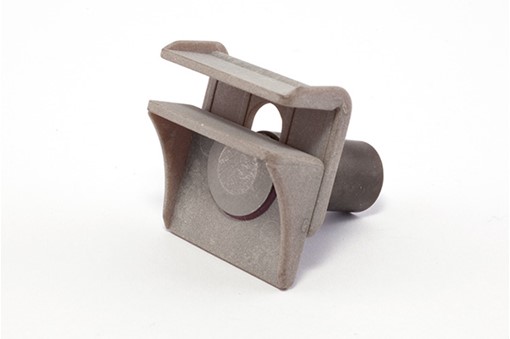

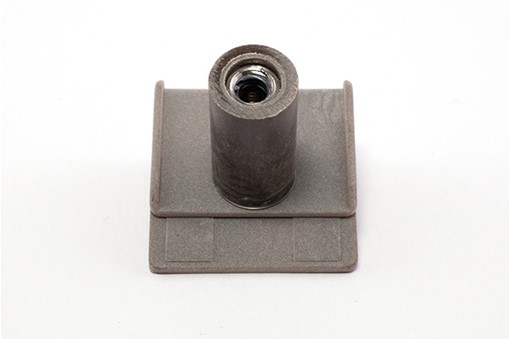

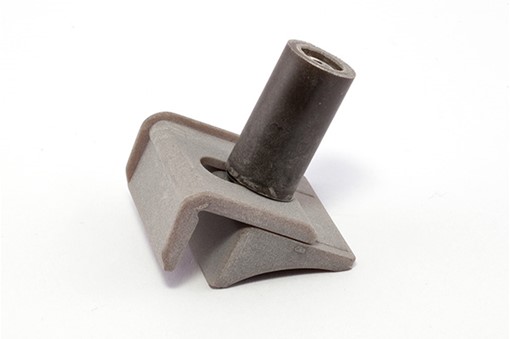

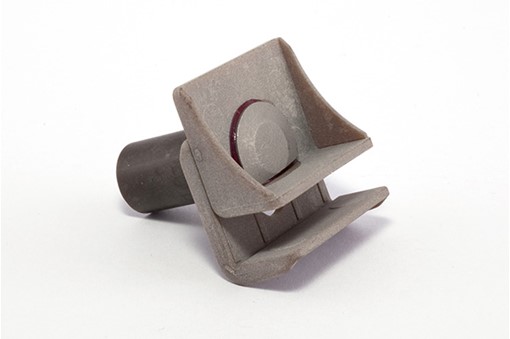

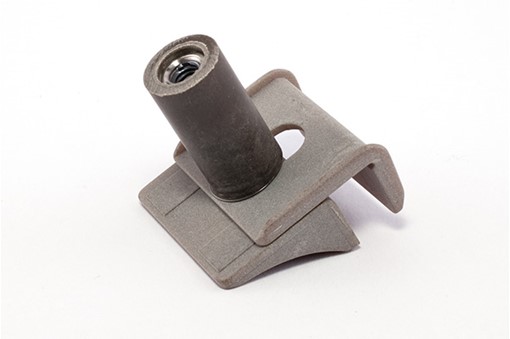

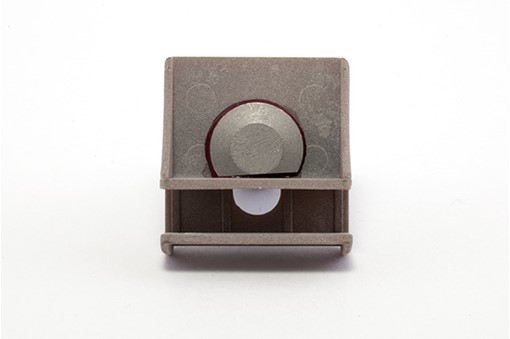

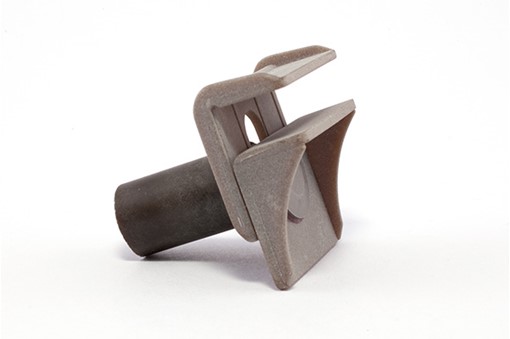

CB4233 - Standoff PINCHMOUNT Bonded Bracket
-
Air -
Sea -
Land -
Industrial
Details
SIZES: Imperial thread sizes from 6-32 (.138"-32) through 10-32 (.190"-32). Product available in standoff lengths from 0.500" to 2.000". Bracket accommodates flange thicknesses from 0.030" through 0.200".
MATERIALS: Bracket leaves are Glass/Epoxy, Carbon/Epoxy, or Glass-filled PEI Thermoplastic. Standoff is Anodized Aluminum, A-286 Stainless Steel, or Titanium. Standoff collar is Glass-filled PEI Thermoplastic.
FEATURES: Locking thread provided by MS21209 or NAS1130 thread insert. Compatible with CB9421 and CB9422 Line Clamp Supports.
Product Overview
Add to FavoritesStandoff bracket allows routing of systems along and over free flanges. Bracket attaches with a simple pinch; patented PINCHMOUNT® design holds bracket securely while adhesive cures.
Applications
- Cables & Wiring
- Equipment Attachment
- Insulation Blankets
- Lighting & Sensors
- Panels
- Tubing & Hoses
