CB4011 - One-Lug Bracket-Retained Nutplate
-
Air -
Sea -
Land -
Industrial
Details
SIZES: Imperial thread sizes 8-32 (.164"-32) through 1/4-28 (.250"-28), and metric thread sizes M4 through M6.
MATERIALS: Baseplate is Glass/Epoxy or Carbon/Epoxy thermoset composite. Nut element is A-286 Stainless Steel.
FEATURES: Thread lock performance and nutplate strength per NASM25027 or ISO5858 and thread form compliant with AS8879 or ISO5855. Non-locking nut element optionally available.
Product Overview

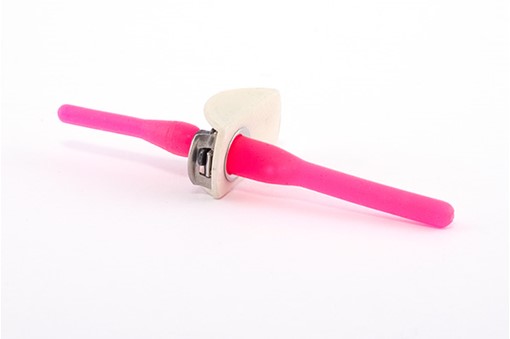

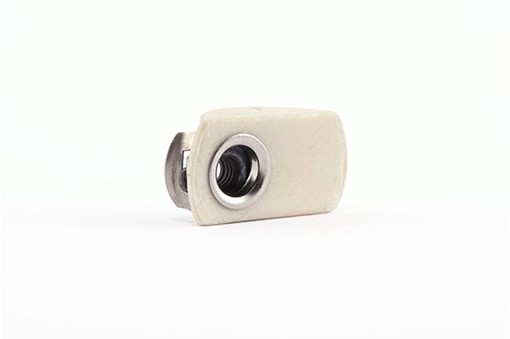

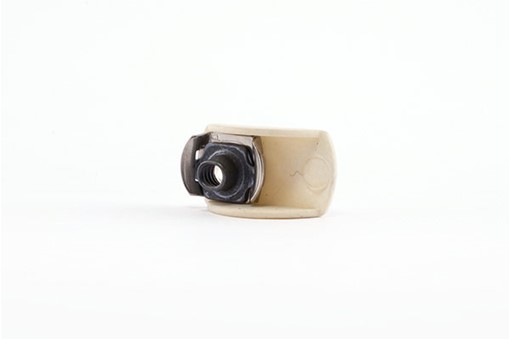

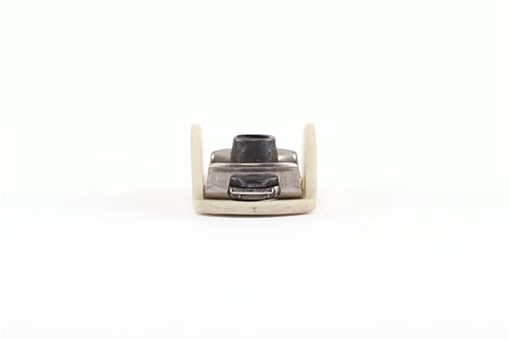

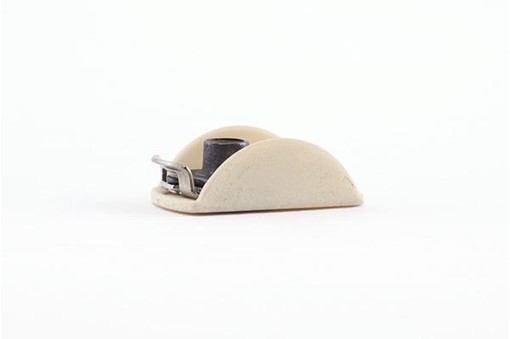

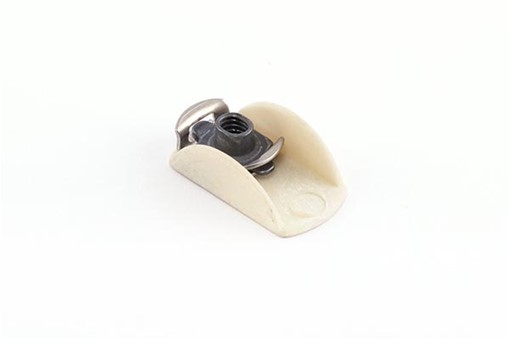

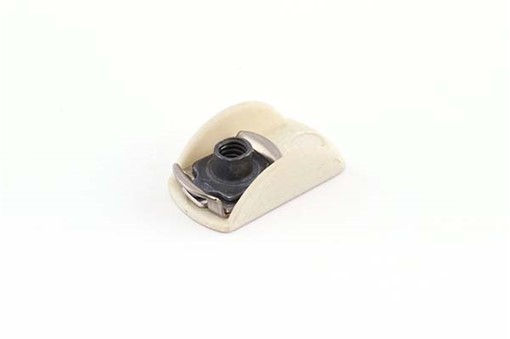

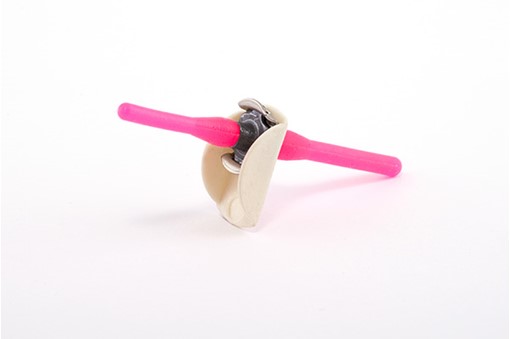

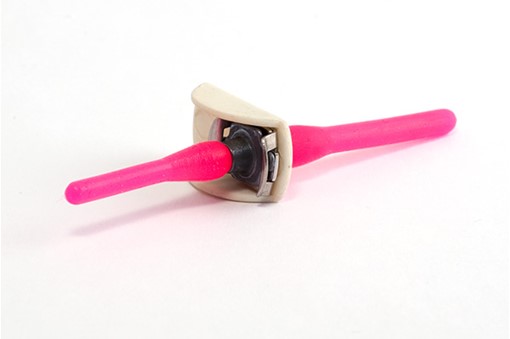

Add to FavoritesOne-lug standard nutplate with composite baseplate and bracket-retained nut element, for weight-critical reduced footprint applications and/or where stringent CTE matching is required. Supplied with integral elastic installation fixture. Fixture simplifies nutplate installation by providing bondline clamp-up and maintenance of concentricity with the fastener hole, ensuring full availability of nut float and protection of threads from adhesive.
Applications
- Decking & Floorboards
- Equipment Attachment
- Fairings
- Fuel & Fluid Tanks
- Interiors
- Panels
- Pressurized Vessels
- Structural Components
- Systems Attachment
Don’t see what you need?
Our engineers are ready to pioneer advanced fastening solutions to solve your design challenges and enable your ideas to take off. Contact our Sales Team to explore customized designs as well as the hundreds of iterative products not shown in our online product database.
Please register to download
As a member of our website, you'll have access to features unavailable to anonymous users:
- View more than 200 product drawings, which include product details, instructions, and information on our installation fixtures.
- Ability to create a Wishlist of your favorite products
These features help members communicate with Click Bond representatives and learn more about the products and their applications.
