CB9356 - Two-Lug Sealed Nutplate

  • AirAir
  • SeaSea
  • LandLand
  • IndustrialIndustrial

Details

SIZES: Imperial thread size 10-32 (.190"-32) in standard counterbores -2 through -7.

MATERIALS: Dome / baseplate are A-286 Stainless Steel. Thrust washer is A-286 Stainless Steel or Anodized Aluminum. Nut is A-286 Stainless Steel with dry film lubrication. Alternatively, cadmium-plated nut available. Optional epoxy primer on bonding surface and dome.

FEATURES: Thread lock performance and nut strength per NASM25027 for steel and titanium bolts. Optional enhanced 50-cycle reuse with steel / stainless steel bolts (vs. 15-cycle standard per NASM25027). Nut and thread form compliant with AS8879. Non-locking nut element optionally available.

Product Overview

Add to Favorites

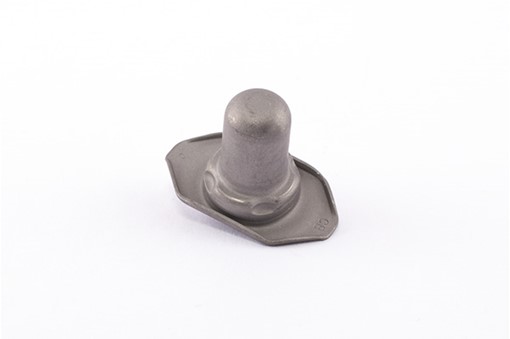

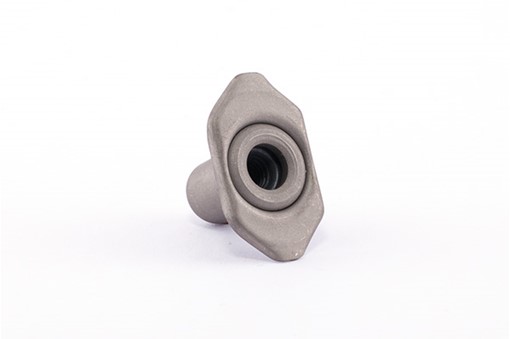

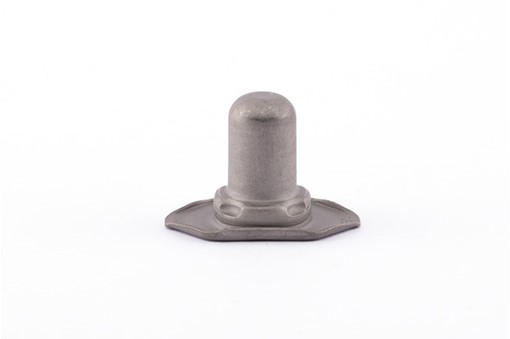

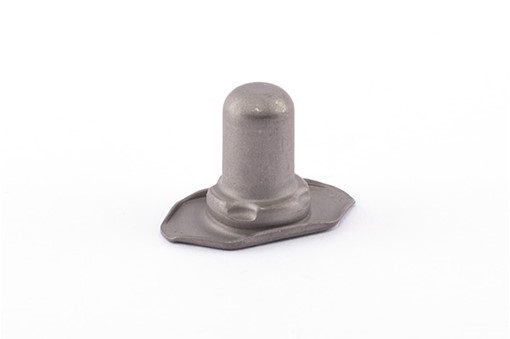

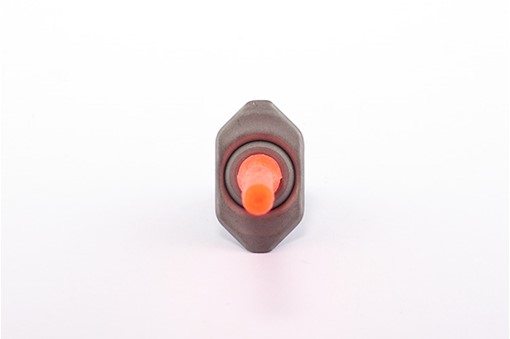

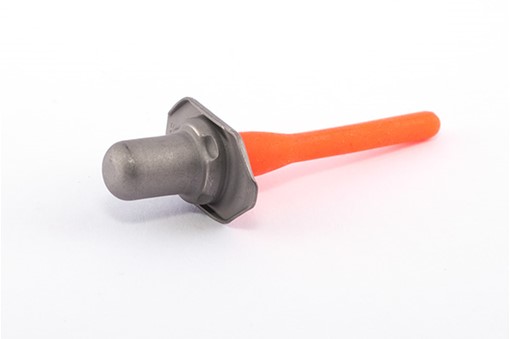

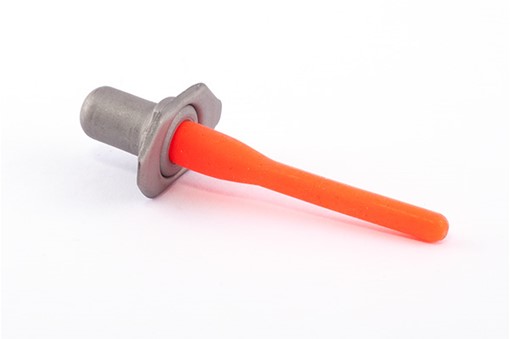

Sealed, extended (.040" radial) float nutplate for closeout of wet bays or pressure vessels where standard nut float is insufficient. Optional 50-cycle high-reuse nut element for applications requiring frequent access. Supplied with integral elastic installation fixture. Fixture simplifies nutplate installation by providing bondline clamp-up and maintenance of concentricity with the fastener hole, ensuring full availability of nut float and protection of threads from adhesive.
