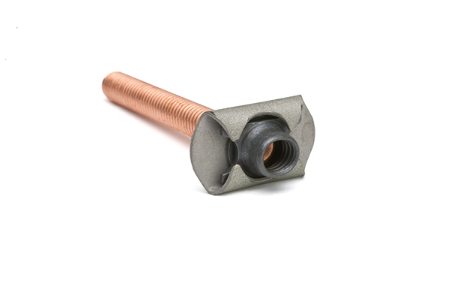

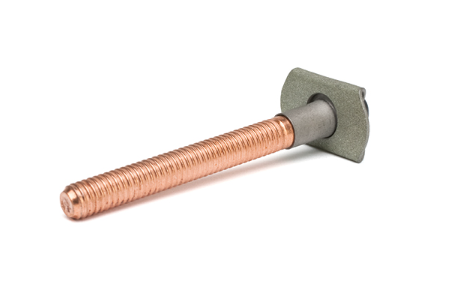

CB9392 - Two-Lug Fold-Over FLEXBOND Sleeved Nutplate

  • AirAir
  • SeaSea
  • LandLand
  • IndustrialIndustrial

Details

SIZES: Imperial thread sizes 8-32 (.164"-32) and 10-32 (.190"-32).

MATERIALS: Baseplate is A-286 Stainless Steel. Nut element is A-286 Stainless Steel with copper plate and dry film lubrication.  Sleeve is A-286 Stainless Steel with optional cadmium or IVD aluminum plating. Optional epoxy primer on bonding surface of baseplate.

FEATURES: Thread lock performance and nutplate strength per NASM25027 and thread form compliant with AS8879. Enhanced nut element offers 50-cycle reuse with steel / stainless steel bolts (vs. 15-cycle standard per NASM25027) and compatibilty with titanium bolts. Non-locking nut element optionally available.

Product Overview

Add to Favorites

Narrow footprint oversize FLEXBOND nutplate features fatigue life enhancing cold worked sleeve. Oversize sleeve returns damaged hole to nominal diameter. Disposable mandrel expands sleeve during installation, leaving fastener hole in radial compression, providing improved fatigue properties. Installation requires CB750 series installation tool. Contact Click Bond Sales for more information.

SUPPORT DOCUMENTS

Applications

  • Decking & Floorboards
  • Equipment Attachment
  • Fairings
  • Fuel & Fluid Tanks
  • Interiors
  • Panels
  • Pressurized Vessels
  • Structural Components
  • Systems Attachment
