CB3001 - Standard-Base Locking-Thread Standoff
-
Air -
Sea -
Land -
Industrial
Details

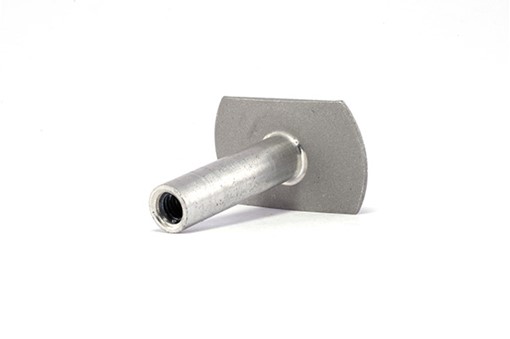

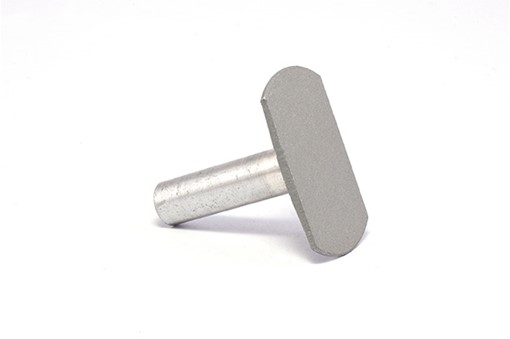

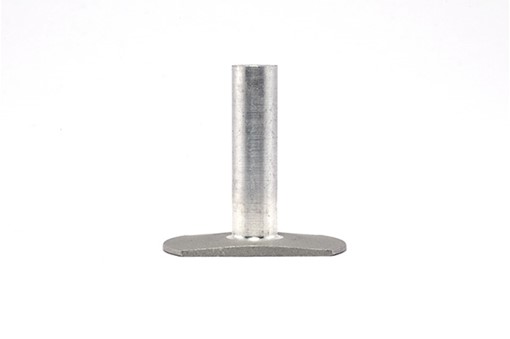

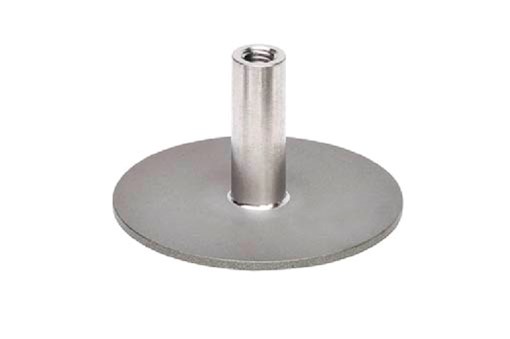

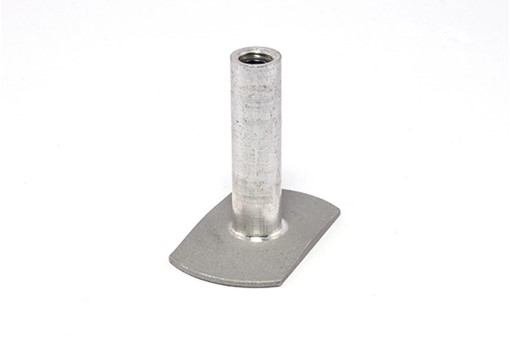

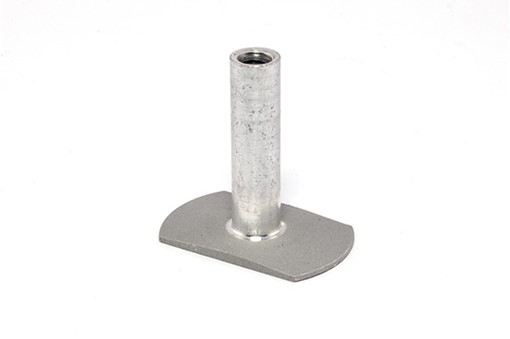

SIZES: Imperial thread sizes from 6-32 (.138"-32) to 10-32 (.190"-32), and metric thread sizes from M3 to M5. Standard baseplate diameter 1.25", with optional 0.75" X 1.25" trimmed baseplate. Standoff lengths from 0.375" through 1.500", and metric lengths from 10,0mm through 35,0mm.
MATERIALS: Standoff is Aluminum, Anodized Aluminum, 300 Series Stainless Steel, A-286 Stainless Steel, or Titanium. Optional epoxy primer or film primer on bonding surface.
FEATURES: Locking thread provided by MS21209 or NAS1130 thread insert.
Product Overview
Add to FavoritesStandoff permits clamped attachment of systems and provides separation from structure. Supplied with disposable installation fixture.
Applications
- Cables & Wiring
- Decking & Floorboards
- Equipment Attachment
- Insulation Blankets
- Interiors
- Lighting & Sensors
- Panels
- Structural Components
- Systems Attachment
- Tubing & Hoses
