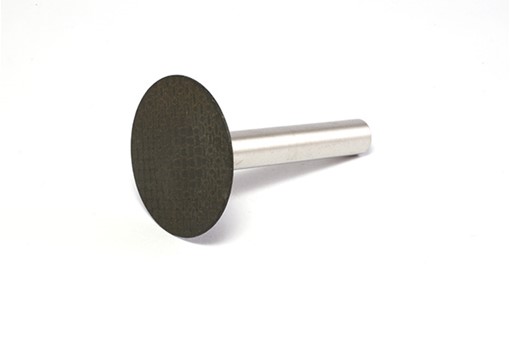

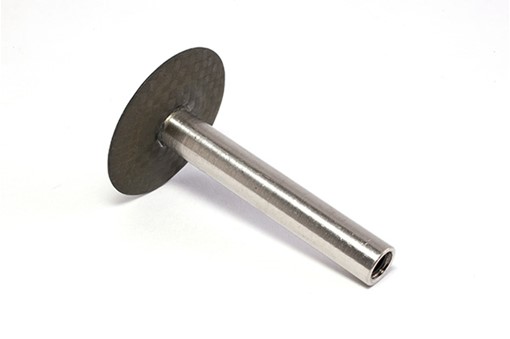

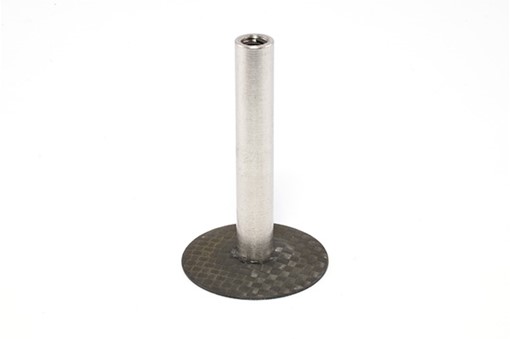

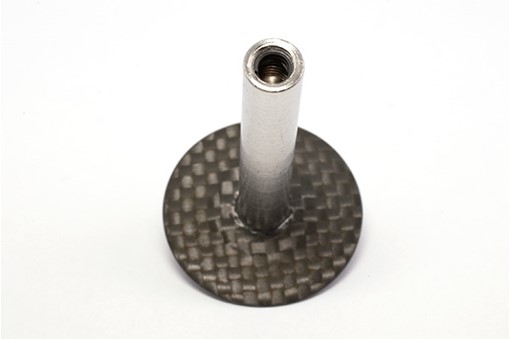

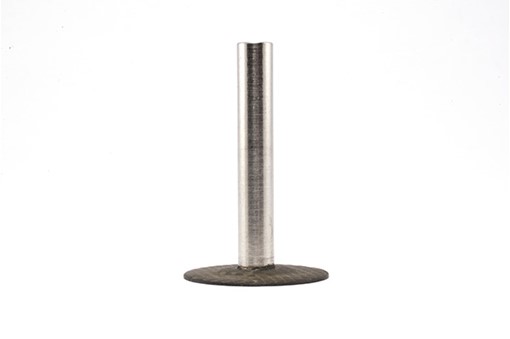

CB4001 - Composite-Base Locking-Thread Standoff
-
Air -
Sea -
Land -
Industrial
Details
SIZES: Imperial thread sizes from 6-32 (.138"-32) to 10-32 (.190"-32), and metric thread sizes from M3 to M5. Standard baseplate diameter 1.25", with optional 0.75" X 1.25" trimmed baseplate. Standoff lengths from 0.312" through 1.500", and metric lengths from 10,0mm through 35,0mm.
MATERIALS: Baseplate materials include Carbon/Epoxy and Glass/Epoxy, and Glass and Carbon filled PEI and PEEK Thermoplastics. Standoff is Aluminum, Anodized Aluminum, 300 Series Stainless Steel, A-286 Stainless Steel, or Titanium. Optional epoxy primer on bonding surface.
FEATURES: Locking thread provided by MS21209 or NAS1130 thread insert.
Product Overview
Add to FavoritesStandoff permits clamped attachment of systems and provides separation from structure. Supplied with disposable installation fixture.
Applications
- Cables & Wiring
- Decking & Floorboards
- Equipment Attachment
- Insulation Blankets
- Interiors
- Lighting & Sensors
- Panels
- Structural Components
- Systems Attachment
- Tubing & Hoses
Don’t see what you need?
Our engineers are ready to pioneer advanced fastening solutions to solve your design challenges and enable your ideas to take off. Contact our Sales Team to explore customized designs as well as the hundreds of iterative products not shown in our online product database.
