CB6209 - Two-Lug Straight-Sleeved Nutplate

  • AirAir
  • SeaSea
  • LandLand
  • IndustrialIndustrial

Details

SIZES: Imperial thread sizes from 8-32 (.164"-32) to 3/8-24 (.375"-24) and metric thread sizes from M4 to M10. Multiple standard counterbores from -1 through -6 available in most diameters.

MATERIALS: Standard baseplate is A-286 Stainless Steel, with Aluminum and Anodized Aluminum optionally available. Nut retention clip is 302 Stainless Steel or ARMCO 18-2 MN Stainless Steel. Standard nut element is A-286 Stainless Steel with dry film lubrication. Alternatively, cadmium or silver-plated nut available. Sleeve is A-286 Stainless Steel. Optional epoxy primer on bonding surface of baseplate.

FEATURES: Thread lock performance and nutplate strength per NASM25027 or ISO5858 and thread form compliant with AS8879 or ISO5855. Non-locking nut element optionally available.

Product Overview

Add to Favorites

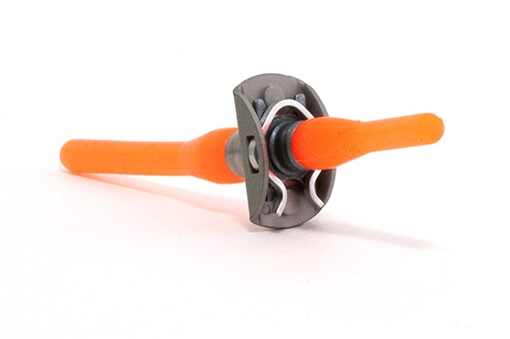

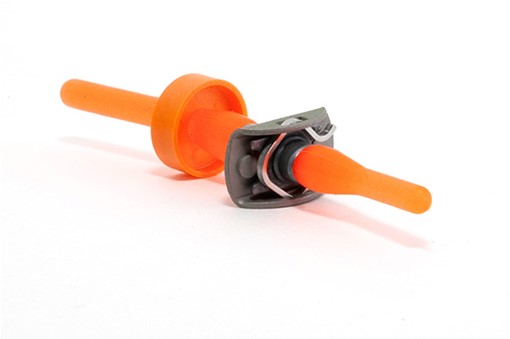

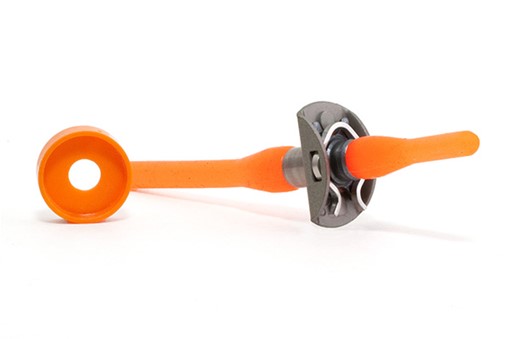

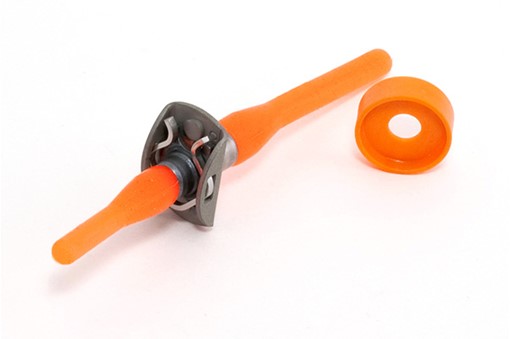

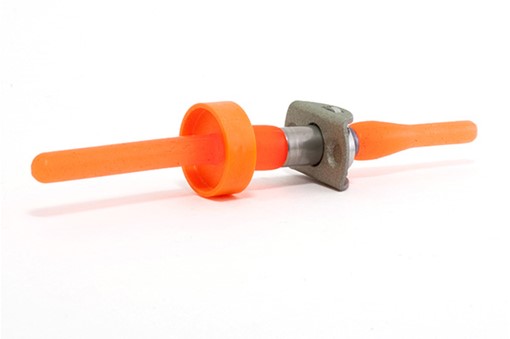

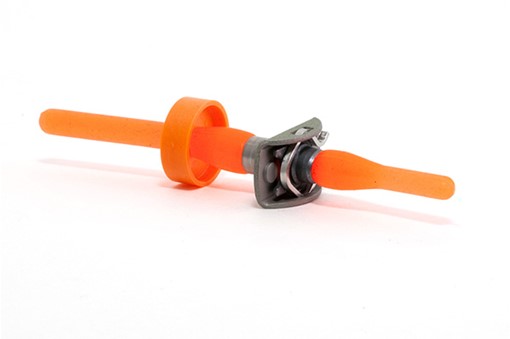

Two-lug sleeved nutplate with replaceable clip-retained nut element. Integral sleeve lines fastener hole bore, providing protection from scoring during fastener insertion and removal. Supplied with integral elastic installation fixture. Fixture simplifies nutplate installation by providing bondline clamp-up and maintenance of concentricity with the fastener hole, ensuring full availability of nut float and protection of threads from adhesive.
